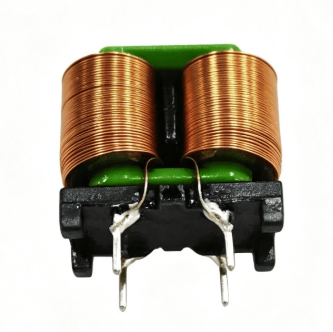

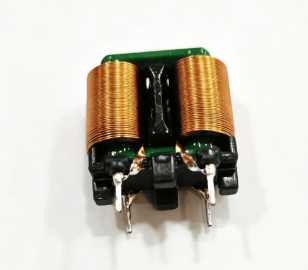

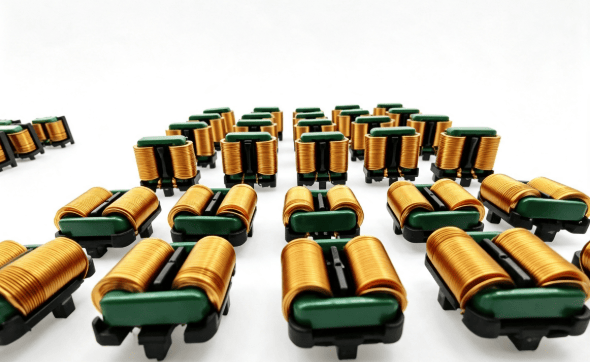

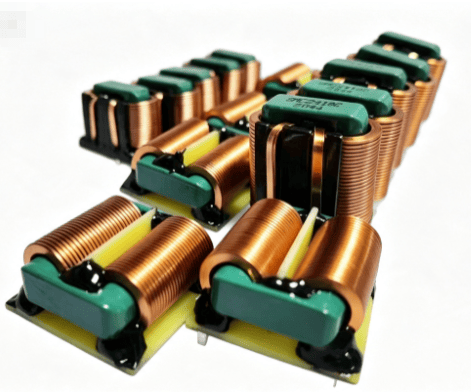

Flat Wire Inductor

Features:

1). Adopts copper foil flat winding design to deliver ultra-low DCR and high saturation current, providing superior EMI noise suppression;

2). Fully customizable specs including inductance value, winding turns, pin pitch, overall dimensions and winding layout to match unique project demands;

3). Minimal magnetic leakage, consistent inductance performance under heavy load, effectively eliminating common-mode electromagnetic interference;

4). Precision copper foil winding process with neatly aligned windings and full insulation treatment for long-term operational reliability;

5). Multiple through-hole base pin configurations available, vertical mounting design for straightforward PCB assembly;

6). Undergoes full varnish impregnation and high-temperature baking, offering reliable heat and moisture resistance;

7). All raw materials comply with RoHS standards to meet global electronic environmental regulations;

8). Supports pre-production sample testing and flexible mass production, complete test reports available upon request.

Specification:

Product Name Copper Foil Flat Wire Common Mode Choke

Winding Construction Copper foil flat winding

Core Material Ferrite

Inductance Range Fully customizable per customer requirements

Operating Temperature -40℃ ~ +125℃

Rated Current Customizable

Withstand Voltage AC 500V, 1 minute

Insulation Resistance ≥100MΩ

Mounting Type Vertical through-hole mounting

Typical Applications Switching power supplies, home appliances, industrial power supplies, new energy equipment, EMI filter circuits

Quality Certification ISO9001 Certified, RoHS Compliant

Manufacturing Process Varnish dipping & high-temperature curing

Dimensions Customized to customer drawings
